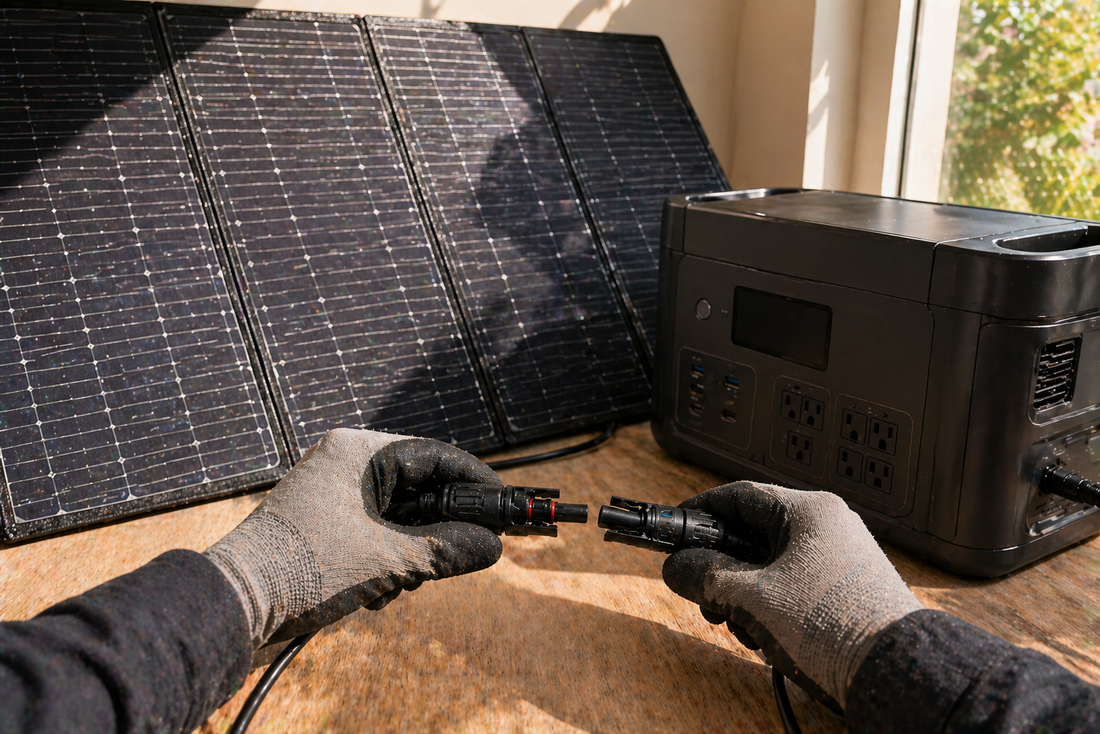

How to Connect Solar Panels to a Portable Power Station
Connecting solar panels to a power station looks simple. Most people assume it is plug and play. In reality, most connection failures come from wrong cables, wrong voltage, or incorrect setup.
This guide focuses on the physical connection process. For system design and compatibility rules, refer to our solar setup guide.
Quick Answer
To connect solar panels to a portable power station, plug the panel's MC4 connectors into a compatible adapter, then connect that adapter to the station's input port (XT60, Anderson, or DC barrel). Before connecting, verify that voltage and current stay within the station's input limits. Most setups require a single adapter and a direct connection. Avoid stacking adapters or exceeding voltage limits.
Common Mistake
Connecting Without Reading the Specs
The most expensive mistake on this entire page is plugging in a panel without verifying voltage, current, and connector type first. The panel works. The station works. The combination can still kill the charge controller in seconds if the voltage is wrong. Two minutes of spec-checking saves a station that costs hundreds of dollars to repair.
Step 1 · Critical
Identify Your Station Input Type
Before you touch a cable, identify exactly what input port your station has. The connector type determines which cable or adapter you need, and the input limits determine whether the panel is even safe to plug in.
Connector type. Three common types on portable stations: XT60 (older EcoFlow units), Anderson Powerpole (some Jackery models, DIY setups), and DC barrel (older or budget stations). Most modern stations expose MC4 directly or include an MC4 adapter cable in the box.
Voltage range (V). The minimum and maximum input voltage the station accepts. Usually 11V to 60V. Exceeding the top value damages the charge controller permanently.
Maximum current (A). The amperage ceiling combined across all panels in parallel. Typically 10A to 15A.
Maximum solar input (W). The total wattage the input accepts. Anything above this is ignored. For sizing rules, see what size power station you need for a refrigerator.
If you do not know your input type and limits, do not connect anything. Open the manual or product page first. Everything below assumes you have these four values written down.
Step 2
Understand Panel Output Before You Plug In
Every solar panel has three numbers printed on the back label or in the spec sheet. You need all three before connecting.
Open-circuit voltage (Voc). The maximum voltage the panel produces when no load is connected. This is the value the station sees the moment you plug in. Voltage must always stay within the station's input range.
Maximum power current (Imp). The current the panel produces under normal operating load. This is the realistic reference for sustained output.
Rated wattage (W). The maximum output under standard test conditions. Real-world output is typically 70% to 85% of this number.
For two panels in parallel, current adds (Imp doubles, voltage stays the same). For two panels in series, voltage adds (Voc doubles, current stays the same). Both math results must respect the station's limits before you connect anything. If you are still choosing which station to pair with your panels, see which stations handle real solar input limits correctly.
Step 3
Inspect Cables and Connectors Physically
Before plugging anything in, run a quick physical check on every cable and connector. This is the part most owners skip, and it is the source of half the failures we see in the field.
MC4 male and female matching. Solar panels have two MC4 connectors: one male, one female. Stations or adapters have the matching opposite. Verify that the male end of one cable seats fully into the female end of the other. A loose fit means a bad connection, intermittent charging, or no charging at all.
Polarity correct. The positive lead is marked red or with a "+" symbol. The negative is black or "-". Reversing polarity at the station input can trip a protection circuit at best, or damage the controller at worst. Always check before plugging.
Connector condition. Look for cracked plastic, corroded metal pins, or burn marks. A connector that has overheated even once is no longer reliable. Replace it. Cheap aftermarket connectors are the most common offenders.
Click and lock. Quality MC4 connectors lock with an audible click. If yours slide together without resistance, the seal is poor. Water and dust will eventually corrupt the contact. A proper MC4 connection is firm and locked.
For full wiring rules, adapter selection, and efficiency considerations, see our detailed solar setup guide.
Step 4 · Procedure
The Correct Connection Sequence
The order in which you connect components matters. Follow this sequence every time.
- Connect the panel-side MC4 connectors first. If you have multiple panels, link them in parallel or series at the panel side using a Y-branch or extension cable. Verify polarity at this stage.
- Attach the adapter cable. Connect the MC4 end into the panel array output. The other end (XT60, Anderson, or DC barrel) stays disconnected for now.
- Connect the adapter to the station last. With panels in the sun and the array fully assembled, plug the station-side connector into the input port. The station should detect input within a few seconds.
- Verify input on the display. The station should show watts incoming. If the display shows zero or an error code, disconnect immediately and recheck specs.
Always connect panels first, then the station. Never reverse the sequence. Plugging an empty cable into the station first and then introducing live solar voltage is what causes the worst connector arcing damage.
Step 5
Wiring Parallel and Series Setups
The two most common configurations for connecting multiple panels are parallel and series. Each requires a specific cable and a specific physical setup.
Parallel wiring uses a Y-branch (T-branch) cable. The Y-branch has two female MC4 inputs on one side and a single male output on the other. Each panel connects to one input, and the output goes to the station. Result: voltage stays the same, current doubles. Use this configuration when you want more power without raising voltage.
Series wiring uses a direct chain. Connect the male output of panel 1 to the female input of panel 2. The free male end of panel 2 then connects to the station. Result: voltage doubles, current stays the same. Use this configuration only when you have explicitly verified that the combined Voc stays under the station's input ceiling.
Order of physical connection for parallel. Connect both panels to the Y-branch first. Then connect the Y-branch output to the adapter. Then the adapter to the station. Working in this order avoids accidentally short-circuiting one panel against the other while assembling.
Polarity matters everywhere. Each MC4 connector has a defined positive and negative side. Mixing them in parallel creates a dead short. The protection circuit in good panels survives this once or twice, then fails permanently.
Once your wiring matches the configuration above, the array is ready to connect to the station as described in the next step.
⚡ Modern Energy Tip
Always connect panels in the shade or with the panel face down before plugging into the station. A panel exposed to direct sun produces voltage the moment light hits it, and that live voltage at an open connector creates arcing risk during the final plug-in. Cover the panel, connect everything, then expose it to the sun. The station detects input cleanly without spark, heat, or connector damage. This is a five-second habit that protects expensive hardware for years.
Step 6
Real Setup Example: Jackery 1000 v2 + Two SolarSaga 100W
This is the most common real-world setup because it requires no adapters and minimal configuration. Both products are designed by the same brand to work together natively.
Station: Jackery Explorer 1000 v2, 1070Wh LiFePO4 battery, 1500W continuous output, 3000W surge, 400W max solar input via dedicated DC port.
Panel array: two Jackery SolarSaga 100W panels connected in parallel using the Jackery solar adapter cable (included with the station).
Combined output: approximately 22V / 11A / 200W rated. All three values respect the station's input window. No adapter chaining, no voltage math required, no compatibility risk.
Real-world delivery: roughly 140Wh to 170Wh per peak sun hour after chain losses. In 5 peak sun hours, that adds 700Wh to 850Wh back to the battery. Enough to fully recharge the station from 20% to 100% over a typical sunny day, or to offset most of a standard fridge's daily load. For the daily fridge consumption math behind these numbers, see our refrigerator runtime calculator. The inverter must also handle the compressor startup surge, which the Jackery 1000 v2 handles cleanly thanks to its 3000W surge rating.
Jackery Explorer 1000 v2
1070Wh LiFePO4 · 1500W continuous · 3000W surge · 400W max solar.
Also available on Amazon
Jackery SolarSaga 100W
Native plug-and-play with Jackery stations. No adapter required. Pair two for 200W in parallel.
Step 7
How to Verify the Connection Works
Once everything is plugged in and the panel is in the sun, the station's display tells you in seconds whether the connection is working correctly. Here is what to check, in order.
Input wattage on display. The station should report incoming watts within 5 to 10 seconds of plugging in. If it shows 0W after one minute, something is wrong. Check polarity, connector seating, and panel exposure to direct sun.
Stability of the reading. Input should hold steady within a small range (e.g., 180W to 200W) on a clear day. Wild fluctuations from 50W to 200W indicate a poor connection, a damaged cable, or partial shading on the panel.
Battery percentage rising. Within 10 to 15 minutes, the battery percentage should visibly increase. If the percentage stays flat despite incoming watts, the input is being consumed by load (something is plugged in and drawing power) rather than charging.
Charge speed compared to expected. Real charging speed depends on panel output, charge controller efficiency, and inverter losses. In most setups, expect roughly 65% to 80% of rated input to translate into usable energy. A 200W panel typically delivers 130W to 160W of effective charging power. If your real-world output sits well below this band, the issue is mismatch or wiring, not the panel.
If input power is lower than expected, the issue is usually mismatch, not the panel itself. Verify each spec against the station's input limits before assuming hardware failure.
Step 8
What Not to Do
Most connection failures are caused by simple mistakes, not defective hardware. Avoid these four traps and you avoid 90% of the field failures we see.
Exceed the Voltage Ceiling
A combined Voc over the station's input limit can cause permanent charge controller damage. Always calculate before connecting in series.
Stack Multiple Adapters
One adapter maximum. Every extra connection adds resistance and creates a failure point.
Reverse the Polarity
Positive to negative is a dead short. Always verify red to red, black to black, before plugging.
Ignore the Spec Sheet
Connecting before reading Voc, Imp, and the station's input limits is the number one cause of damaged hardware.
Quick Decision Guide
| Your Situation | Verdict | Action |
|---|---|---|
| MC4 panel, MC4 station, voltage and current within limits | Proceed | Connect directly. No adapter needed. Verify input on display within 10 seconds. |
| Panel and station use different connectors | One adapter only | Use a single quality adapter cable, never two stacked. Verify all four limits first. |
| Combined panel Voc exceeds station voltage ceiling | Stop | Reconfigure to parallel or use a smaller panel. Hardware damage risk if you proceed. |
| Setup unclear or specs missing | Do not connect | Find the specs first. Two minutes of verification beats a damaged station. |
Connection Checklist
- Identify station input type: MC4, XT60, Anderson, or DC barrel
- Record station voltage range, max current, and max solar input
- Read panel spec sheet: Voc, Imp, and rated wattage
- Verify combined values stay within station limits (parallel or series)
- Inspect connectors physically: matching MC4 ends, correct polarity, no damage
- Use one adapter maximum if connectors do not match natively
- Connect panel side first, station side last
- Cover or shade the panel during physical connection to avoid arcing
- Verify input wattage and stability on the station display within 10 seconds
Final Verdict
Connecting Solar Is Simple When the System Is Matched
Connecting solar panels to a power station is simple only when the system is matched correctly. Most failures come from ignoring limits, not from defective hardware. Read the specs first. Inspect the connectors. Follow the sequence. Verify on the display.
Get those four habits right, and the connection works the first time, every time. Skip them, and you risk damaging hardware that costs hundreds of dollars to repair.
