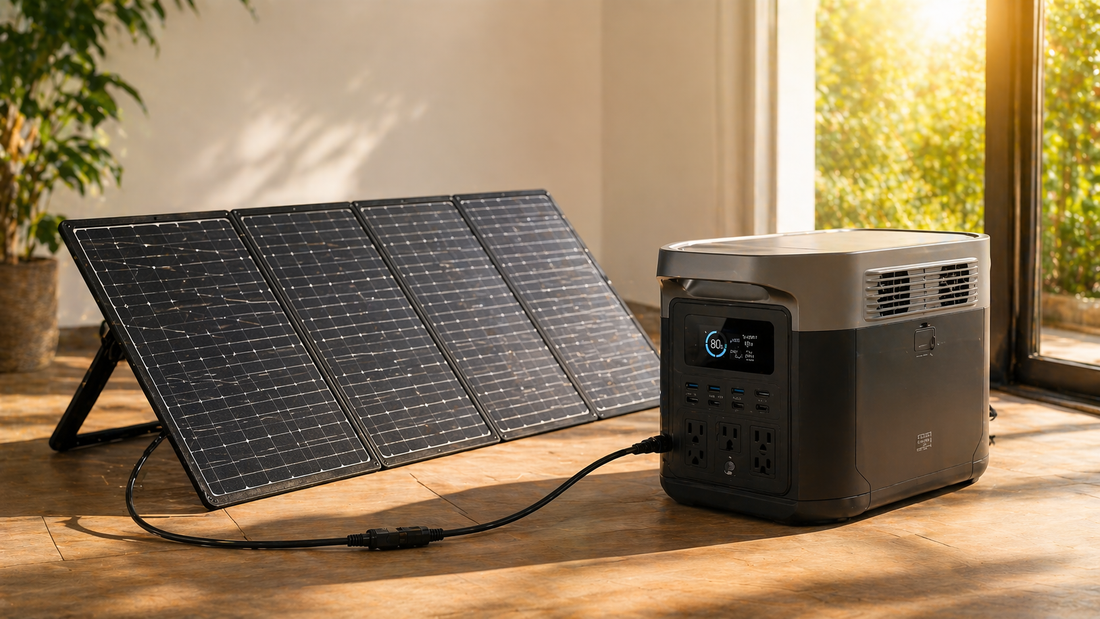

How to Add Solar to an Existing Power Station Setup
Adding solar to an existing power station sounds simple. In reality, most setups fail because the panel does not match the station's input limits.
Solar only works when the system is correctly matched.
Quick Answer
To add solar to an existing power station, match the panel's voltage, current, and wattage to the station's solar input limits. Use MC4 connectors or compatible adapters, stay within the input range, and never exceed voltage limits. Most systems work best with 200W to 500W of solar, depending on the station. Compatibility matters more than panel size.
Common Mistake
Buying a Panel Before Checking Station Limits
Most owners buy a solar panel based on wattage alone, then discover the station ignores half the output or refuses to charge because the voltage is wrong. Adding solar is not a plug-and-play upgrade. It is a compatibility match between three independent limits: wattage, voltage, and current.
Step 1 · Critical
Confirm Your Station's Solar Specs
Before you buy any panel, open your station's manual or product page and write down four values. These are the non-negotiable constraints every future decision depends on.
Maximum solar input (W). The total wattage the charge controller can accept. Typical range: 400W to 900W for portable stations. This is the ceiling your panel array cannot exceed without waste.
Voltage range (V). The minimum and maximum open-circuit voltage (Voc) the input accepts. Usually between 11V and 60V. Exceeding the top value can permanently damage the charge controller.
Current limit (A). The maximum amperage the input handles. Typically 10A to 15A combined across all panels connected in parallel.
Connector type. Most modern stations use MC4 (Bluetti, EcoFlow, Jackery). Older or specialized units use XT60 or Anderson Powerpole. This determines which cables and adapters you will need.
If you do not know your station's input limits, you cannot add solar safely. Stop here, find the spec sheet, and verify all four values. Everything below assumes you have those numbers in hand.
Step 2
Choose the Right Panel Type
Solar panels for portable power stations fall into two practical categories. Each has a specific use case, and choosing wrong means either wasted money or daily frustration.
Foldable portable panels. Built for mobility. Fabric-backed, fold into a briefcase, integrated kickstands, built-in MC4 output. Ideal if you plan to deploy solar only during outages or trips. Output range: 100W to 400W. Examples: EcoFlow 220W Bifacial, Bluetti PV200, Jackery SolarSaga series.
Rigid roof or ground panels. Built for permanent installation. Aluminum frame, tempered glass, longer lifespan (25+ years). Ideal if you are mounting panels on a shed, RV, or dedicated ground rack. Output range: 100W to 450W per panel. Not covered in this guide beyond basic mention, as they require different installation logic.
For most readers adding solar to an existing station, foldable panels are the correct choice. They match the portable philosophy of the power station itself, use MC4 connectors by default, and require zero permanent installation. If you are looking for reliable stations specifically built for real solar performance under load, we have already vetted the top options.
Step 3
Match Panel Output to Station Input
Once you know your station's limits, the panel wattage decision becomes mechanical. The rule is simple: your panel array's rated wattage must be equal to or below your station's maximum solar input.
A 400W panel connected to a station limited to 200W input does not charge faster. The station caps the input, and the excess power disappears every hour the sun shines. You paid for output your hardware will never accept.
The opposite error is undersizing. A 100W panel on a 900W ceiling station is legal but inefficient. You leave 800W of potential capacity on the table. For most real-world outage scenarios, the sweet spot is 60% to 80% of your station's maximum solar input.
This 60% to 80% rule applies to solar input sizing, not to battery capacity calculations. Do not confuse this with the 80% usable battery rule (depth-of-discharge), which is a separate constraint on the battery side.
Example: a station rated for 500W max input performs best with a 300W to 400W panel array. That headroom absorbs partial sun, morning angles, and dust accumulation without ever bumping the ceiling. For the full solar sizing method used to match panels to station limits, we break down every variable with worked examples.
Step 4 · Critical
Voltage vs Wattage
This is the distinction that saves hardware. Too many setups fail because owners treat voltage and wattage as the same problem. They are not.
Wattage oversizing wastes capacity. Voltage mismatch can damage the station. These are not the same problem.
Wattage is about efficiency. If your panels produce more watts than the station can accept, the excess is simply ignored. No hardware risk, just financial waste. You overspent on output that never reaches the battery.
Voltage is about safety. If the combined open-circuit voltage (Voc) of your panel array exceeds the station's rated voltage ceiling, the charge controller can suffer permanent damage. Input circuit failure, warranty void, hundreds of dollars in repair. This is a one-time mistake with a permanent cost.
When connecting panels in series (which adds voltages), calculate total Voc before plugging in. When connecting panels in parallel (which keeps voltage constant and adds current), verify the combined current does not exceed the station's amperage limit. Both checks are non-negotiable.
If voltage is wrong, the system fails instantly. If wattage is wrong, it only underperforms.
Now that you understand the match logic, here are the panels we recommend. Each option below uses MC4 connectors by default and pairs cleanly with mainstream station classes.
Bluetti SP100L 100W
Best match for 400W ceiling stations. Compact, IP65, MC4 output. Pair two in parallel for 500W+ ceilings.
Bluetti PV200 200W
Versatile match for 500W to 900W ceiling stations. Pair in parallel for AC200L or larger setups.
EcoFlow 220W Bifacial
Best match for EcoFlow Delta 2 and Delta 2 Max. Bifacial design adds up to 25% extra yield on reflective surfaces.
Jackery SolarSaga 100W
Best match for Jackery Explorer 1000 v2 and smaller Jackery units. Plug-and-play, native connector, no adapter.
Step 5
Wiring, Connectors, and Parallel Setup
The wiring between panel and station is the silent killer of solar performance. Poor cables and adapter stacks can lose 5% to 10% of your output before the electricity even reaches the charge controller.
MC4 is the universal standard. Most quality stations and panels use MC4 connectors natively. If both ends match, plug and go. No adapter, no loss, no risk.
XT60 and Anderson require adapters. Older EcoFlow units use XT60. Some Jackery models and DIY setups use Anderson Powerpole. For these, you need a short, quality MC4-to-XT60 or MC4-to-Anderson adapter cable. A universal MC4 adapter like the SunJack MC4 handles most cross-brand pairings without stacking.
Never stack adapters. One adapter maximum. Every additional connection increases resistance, creates heat, and reduces efficiency. If you need two adapters to connect your panel, the combination is wrong. Get a single cable with the correct end types instead.
Cable quality matters. Use 10 AWG or better, keep length under 1 meter when possible, and avoid no-name extensions. Cheap adapters can cause 5% to 10% power loss from the moment you plug in.
Parallel connections add current, not voltage. Two 100W panels rated 20V / 5A connected in parallel produce 20V / 10A / 200W. Voltage stays safe within the station's input window, current doubles, wattage doubles. This is the correct way to scale up without risking voltage limits.
Series connections add voltage, not current. The same two panels connected in series produce 40V / 5A / 200W. Dangerous if your station caps at 30V. Only use series when you have explicitly verified that the combined Voc stays within the station's ceiling.
Use operating current (Imp) as the realistic reference under load, and Isc (short-circuit current) as the safety ceiling. Both must stay within your station's amperage limit. If either exceeds the limit, reconfigure the array before connecting.
⚡ Modern Energy Tip
Target 60% to 80% of your station's maximum solar input, never 100%. A station rated for 500W performs best with 300W to 400W of panels. That margin absorbs partial sun, suboptimal angles, temperature drops, and dust accumulation without ever capping. Owners who maximize to 100% of the ceiling see real-world output rarely above 80% anyway, and they overspend on panel capacity the hardware cannot use.
Step 6
A Real Setup Example
Numbers make the rules concrete. Here is a realistic fridge backup scenario using two panels in parallel.
Station: EcoFlow Delta 2 Max, 2048Wh, 500W max solar input, 11V to 60V voltage range, 15A max current, MC4 connector.
First attempt: two EcoFlow 220W Bifacial panels connected in parallel. Each panel: 23V operating voltage, 9.5A operating current (Imp).
Combined output in parallel: 23V (unchanged), 19A current, 440W rated.
The combined current (19A) exceeds the station's 15A limit. This setup fails the current check, even though the wattage (440W) respects the 500W ceiling and the voltage (23V) fits the range.
Correct alternative: use two panels in parallel only if each panel's current is low enough to keep total current under the station limit, or choose panels with lower Imp values. In this case, two 200W panels rated 22V / 6.5A each give a combined 22V / 13A / 400W in parallel. All three limits respected. Wattage at 80% of the 500W ceiling, current under 15A, voltage in range.
Real-world output after chain losses: roughly 320Wh per peak sun hour, or 1600Wh over 5 peak sun hours. That fully offsets a standard fridge's daily consumption and leaves surplus to recharge the station. This is the kind of configuration that actually delivers the solar promise.
For the daily fridge consumption math and how to model your specific setup, see our refrigerator runtime calculator. For why the inverter must also handle the compressor startup surge, we break that down separately.
Step 7
Why Solar Might Not Improve Your Setup
Adding solar does not fix every weakness. In fact, three common scenarios see almost no benefit from adding panels, and one of them is the reason most disappointed owners blame their panels when the real problem is elsewhere.
Your battery is too small. A 500Wh station with a 200W panel can recharge itself during the day, but that small battery still drains in a few hours of fridge use. Solar does not fix a small battery. It only slows down the drain. This is the number one reason users think their solar panels do not work. If your station is undersized for your load, solar helps marginally and the real fix is a larger station. Our guide on what size power station you need for a refrigerator walks through the sizing logic.
Your exposure is poor. Panels placed in partial shade, behind objects, or at bad angles rarely produce more than 40% to 60% of rated output. Solar panels are not forgiving. If the only spot you have receives four hours of direct sun or less, adjust expectations accordingly.
Your expectations are unrealistic. A 100W panel in five hours of sun delivers around 350Wh to 400Wh of real-world energy. That is enough to top off a small station or offset daytime loads. It is not enough to run a fridge indefinitely off-grid. Matching expectations to math is half the battle.
Step 8
What Not to Do
Exceed the Voltage Ceiling
A combined Voc over the station's input limit can cause permanent charge controller damage. Always calculate before connecting in series.
Stack Multiple Adapters
One adapter maximum. Every extra connection adds resistance and cuts efficiency by 5% to 10%.
Ignore Current Limits
Parallel setups can exceed amperage ceilings even when wattage and voltage are fine. Check Imp and Isc together.
Connect at Random
Never plug a panel into a station without verifying all three limits first. Guessing is how hardware dies.
Quick Decision Guide
| Your Situation | Verdict | Key Constraint |
|---|---|---|
| Panel Voc, current, and wattage all within station limits | Proceed | Use MC4 if matched, one adapter maximum if not. Quality cable under 1 meter. |
| Combined panel Voc exceeds station voltage ceiling | Stop | Hardware damage risk. Reconfigure to parallel or use smaller panel. |
| Panel wattage exceeds max solar input | Waste | No damage, but excess output ignored. Use smaller panel or accept lost capacity. |
| Station battery is 500Wh or less | Limited benefit | Solar slows the drain but does not fix an undersized battery. Upsize the station first. |
Integration Checklist
- Record your station's max solar input (W), voltage range (V), current limit (A), and connector type
- Choose foldable panels for portability, rigid panels only for permanent installs
- Target panel array at 60% to 80% of max solar input, not 100%
- Verify combined Voc never exceeds station voltage ceiling (series risk)
- Verify combined current (Imp and Isc) never exceeds amperage limit (parallel risk)
- Use MC4 direct when possible, one adapter maximum if cross-brand
- Use 10 AWG or better cables, length under 1 meter when possible
- Accept that solar extends runtime, it does not replace a properly sized battery
Final Verdict
Adding Solar Is a Compatibility Problem, Not a Shopping Problem
Adding solar to an existing power station only works when your panel matches your station's limits. Wattage, voltage, and current are three independent constraints, and skipping any one of them leads to either wasted money or permanent hardware damage.
Get the match right, keep adapters to a minimum, target 60% to 80% of the input ceiling, and the system performs exactly as the math predicts. Without that match, the system underperforms or fails.
