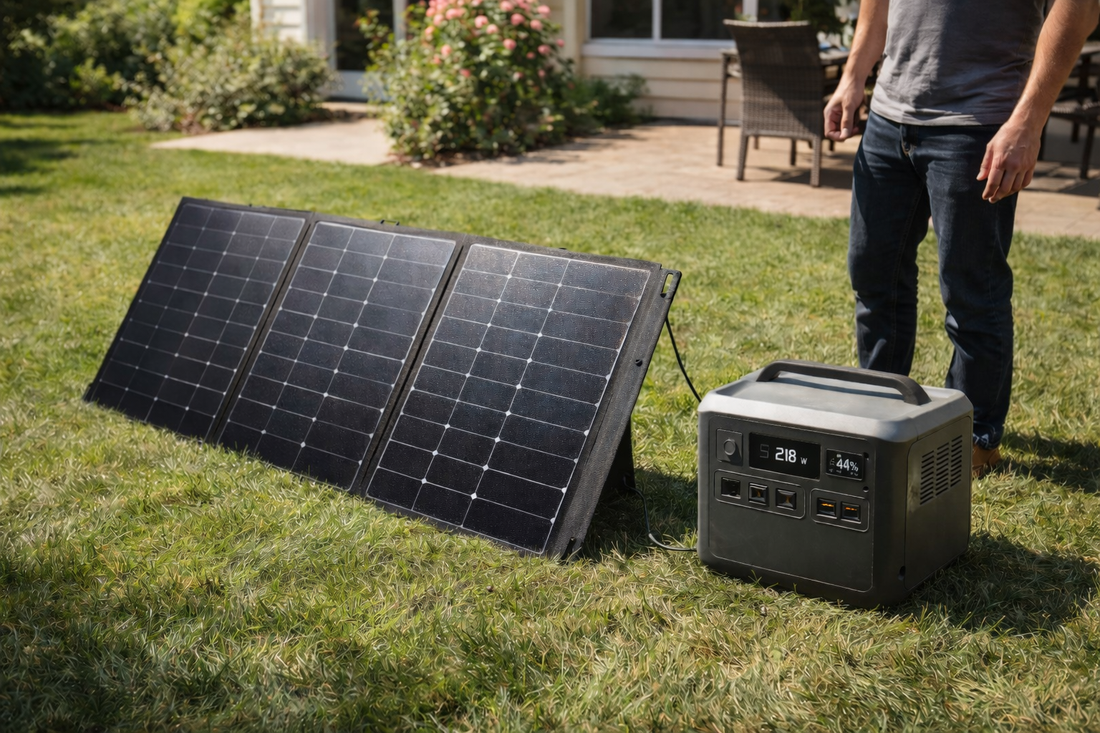

How to Size a Solar Panel for a Portable Power Station
Share
Most people buy solar panels based on wattage alone. That is why their system underperforms. Proper sizing is not about panel size. It is about matching the panel to the station's limits.
The biggest panel is not the best panel. The right panel is the one that respects the math and the hardware simultaneously.
Quick Answer
To size a solar panel for a portable power station, calculate your daily energy needs in watt-hours, adjust for efficiency (typically 80%), and match your panel output to the station's solar input limits. Most systems require 200W to 500W of panels, but the exact size depends on battery capacity, sunlight hours, and input constraints. Oversizing beyond the station's limit does not increase charging speed. The method below walks through each step, with real example scenarios and the two adjustments that separate theoretical numbers from real-world performance.
Common Mistake
Buying Panels Before Checking Station Limits
The most common sizing error is buying panels first and hoping the station will handle them. If the array exceeds the station's max solar input, the excess wattage is ignored. If it exceeds the voltage ceiling, the station can be permanently damaged. Always verify the station's three input limits before buying any panel.
Step 1
Understand Your Daily Energy Need
Before you buy any panel, you need to know how much energy your system must replace each day. This is the baseline every other decision depends on.
The formula is simple. Energy in watt-hours (Wh) equals device wattage multiplied by hours of use.
Example: a refrigerator drawing 150W continuously for 8 hours uses 150 × 8 = 1200Wh per day.
But here is the trap. Rated battery capacity is not usable capacity. Most stations deliver around 80% of their rated Wh due to inverter efficiency, battery aging, and temperature effects. A 2048Wh station typically delivers 1600 to 1700Wh of real-world usable power.
Use conservative estimates only. Never round usable capacity up. 80% of rated Wh is the ceiling, not the floor. Before sizing panels, know which station you are sizing for. The size of the station dictates how much solar input it can accept, and that ceiling constrains everything downstream. Our guide on what size power station you need for a refrigerator walks through station sizing first.
Step 2
Convert Energy Need Into Solar Input
Solar panels do not produce their rated wattage all day. They produce rated power only during peak sun hours, a narrow window around midday. Outside that window, output drops significantly.
These estimates assume 4 to 6 effective sunlight hours per day. Do not extend beyond this range. Most regions in North America fall within this window. In winter, cloudy regions, or northern latitudes, plan for the lower end (4 hours). In summer or southern regions, plan for the upper end (6 hours).
The formula: panel wattage required = daily Wh needed ÷ effective sunlight hours.
Example: to replace 1200Wh per day with 5 hours of effective sun, you need 1200 ÷ 5 = 240W of panels minimum. That is the raw theoretical minimum. It does not account for real-world losses, which Step 5 addresses. For stations engineered for real solar performance under load, see our Top 5 portable power stations for refrigerator backup.
Step 3 · Critical
Match the Station Input Limit
This is the step most people skip. It is also the most important.
Every power station has a maximum solar input rating, expressed as three values that must all be respected.
Wattage Limit
Total power in watts the station can accept. Typically 400W to 900W depending on model.
Voltage Limit
Maximum voltage the input can handle. Usually 50V to 60V open-circuit (Voc).
Current Limit
Maximum amperage the input can handle. Usually 10A to 15A combined.
A solar panel that exceeds the station's input limit does not charge faster. The excess power is simply not used.
If you connect a 600W panel array to a station rated for 500W maximum input, the station will only draw 500W. The extra 100W is wasted. You paid for it, but you cannot use it. The three limits are independent. A panel array can meet the wattage limit but exceed the voltage limit, or meet both but exceed the current limit. All three must be within specification simultaneously.
This ceiling is non-negotiable. It is defined by the internal charge controller, not by the battery capacity. Find your station's maximum solar input in the product specifications before buying any panel.
Step 4 · Critical Distinction
Wattage vs Voltage
Wattage oversizing wastes capacity. Voltage mismatch can damage the station. These are not the same problem.
Wattage Oversize
Type of problem: financial
You spend money on panel output your station will never use. No hardware risk. You simply do not recover the investment in excess capacity.
Voltage Mismatch
Type of problem: hardware
Exceeding voltage limits risks charge controller damage, permanent input circuit failure, and warranty void. Verify Voc before connecting.
When connecting panels in series (which adds voltages), calculate total Voc before connecting. When connecting panels in parallel (which keeps voltage constant and adds current), verify the combined current does not exceed the station's amperage limit.
In practice, most users make wattage errors. They buy an oversized array thinking more watts mean faster charging, and discover the station ignores the excess. Voltage errors are rarer but far more costly. A single miscalculated series connection can void a warranty in the first ten minutes of use. Wattage is about efficiency. Voltage is about safety. Handle them as separate checks.
Step 5
Apply the Real-World Adjustment
Real-world solar performance never matches datasheet numbers. Panel angle, ambient temperature, cable losses, connector resistance, partial cloud cover, and dust accumulation all reduce effective output.
The standard adjustment factor is 1.20. Multiply your theoretical panel requirement by 1.20 to account for real-world losses. From Step 2, the theoretical minimum was 240W. Applying the adjustment: 240 × 1.20 = 288W. Round up to the nearest available panel size, which means 300W to 400W in practice.
The 1.20 factor is an industry average derived from laboratory-to-field studies. Lab-rated panels typically lose 15% to 25% of their output under real installation conditions. Apply the 1.20 adjustment only if the result stays within the station's max solar input. The ceiling rule always wins. If your station caps at 400W and your adjusted requirement is 480W, you cannot install 480W. You install 400W and accept that some days will have shorter charging windows.
⚡ Modern Energy Tip
The 1.20 factor is a starting point, not a guarantee. In winter or at high latitudes, real-world output can drop to 60% of rated wattage, which pushes the adjustment closer to 1.30 or 1.40. Check your local solar irradiance data before buying. Five hours of effective sun in Arizona is not the same as five hours in Minnesota.
Step 6
Parallel Panels Explained
Parallel connection is the standard approach for portable solar setups. It keeps voltage constant while adding the current from each panel.
Example: two 100W panels with 20V operating voltage and 5A operating current, connected in parallel, produce 20V unchanged, 10A combined current, and 200W total.
The voltage stays within your station's input window, and you double your wattage. Series connection adds voltages instead, which can push you over the station's voltage limit quickly with just two or three panels.
Panel specifications list two current values. Imp (current at maximum power) is the realistic operating current under load. Isc (short-circuit current) is the maximum current the panel can produce under ideal conditions. Use operating current (Imp) as the realistic reference, and Isc as the safety ceiling. Both must stay within limits.
Universal MC4 parallel cables (such as the SunJack adapter) allow you to combine panels without modifying connectors. These are inexpensive accessories that simplify wiring without compatibility issues.
Step 7
Example Scenarios
Real scenarios make the math concrete. Here are three common setups with specific recommendations.
| Station | Capacity | Max Solar Input | Recommended Panel Array |
|---|---|---|---|
| Jackery Explorer 1000 v2 | 1070Wh | 400W | 200W |
| EcoFlow Delta 2 Max | 2048Wh | 500W | 400W |
| Bluetti AC200L | 2048Wh | 900W | 600W to 800W |
Scenario A: Jackery Explorer 1000 v2
Replace 500 to 800Wh per day (small fridge, lights, phone charging). With 5 effective sunlight hours, theoretical minimum is 160W. Adjusted for real-world conditions: 192W. Recommended: 200W panel. This leaves headroom without exceeding the 400W input ceiling.
Scenario B: EcoFlow Delta 2 Max
Replace 1200 to 1500Wh per day (standard fridge backup). Theoretical minimum is 300W. Adjusted: 360W. Recommended: 400W panel array. This respects the 500W input ceiling and matches the 3400W X-Boost profile for handling the compressor startup surge.
Scenario C: Mismatched Setup
A 1070Wh station paired with a 400W panel array. Theoretical charge time is 3 to 4 hours. Real-world charge time is 5 to 7 hours once you factor in the 1.20 adjustment and partial sun. The station never underperforms on output. The recharge window is simply longer than the datasheet suggests. For how these sizing choices translate into real refrigerator runtime during outages, see our runtime guide and calculator.
Step 8
What Not to Do
Ignore Input Limits
Oversizing beyond station max input is wasted money. Zero gain in charging speed, zero extra power delivered.
Oversize Blindly
Bigger panels without checking voltage and current specs risk hardware failure, not just wasted wattage.
Mix Voltages
Combining panels with different Voc in series or parallel produces unpredictable output and real safety risk.
Use Wrong Cables
Undersized cables between panels and station cause power loss, heat buildup, and fire risk over extended use.
Step 9
Quick Decision Guide
| Panel Size | Verdict | Use Case |
|---|---|---|
| ✅ 200W | Minimum | Small fridge, lights, CPAP, phone charging. Works with 1000Wh class stations. |
| 🟠 300W to 400W | Optimal | Standard fridge backup on 2000Wh stations with 500W input ceiling. Covers real-world losses comfortably. |
| ❌ Over station limit | Useless | Excess wattage ignored by charge controller regardless of panel size. Zero efficiency gain. |
Sizing Checklist
- Calculate daily Wh need (device watts × hours of use)
- Apply the 80% usable capacity ceiling rule
- Verify station max solar input (W, V, A) before buying
- Apply the 1.20 real-world adjustment factor
- Stay within station ceiling even after the adjustment
- Use Imp for operating current, Isc for safety ceiling
- Connect in parallel to keep voltage constant and add current
Final Verdict
Solar Sizing Is Math, Not Marketing
Solar panel sizing is not about buying the biggest panel available. It is about matching your system to real-world constraints: daily energy need, effective sunlight hours, station input ceiling, and real-world efficiency losses.
Get the math right, respect the hardware limits, and your system performs exactly as expected. Skip either half and the system underperforms on day one.
