How Do Solar Generators Work (Simple Explanation)
Solar generators are often presented as simple plug-and-play devices. In reality, they are systems made of multiple components working together. Understanding how they work changes how you use them and what you expect from them.
Once you understand what is inside the box, every spec on the datasheet starts to mean something specific.
Quick Answer
A solar generator converts sunlight into electricity using solar panels, stores that energy in a battery, and delivers it through an inverter to power your devices. The system includes four main parts: solar panels, a charge controller, a battery, and an inverter. Each part affects performance, efficiency, and runtime. Understanding how these components work together helps you choose and use a system correctly, and explains why real output is always lower than the numbers on the box.
Common Mistake
Treating a Solar Generator Like a Generator
A solar generator does not generate power on its own. It converts and stores energy from the sun. No fuel, no combustion, no continuous output without sunlight. Once you understand it as a system of four components instead of a single device, your expectations align with reality and every sizing decision gets easier.
Step 1
What a Solar Generator Actually Is
The term "solar generator" is misleading. A traditional generator burns fuel (gasoline, propane, diesel) to produce electricity mechanically. A solar generator does none of that. There is no engine, no fuel tank, no combustion, no exhaust, no moving parts.
What people call a solar generator is actually a portable power station paired with solar panels. The power station stores electrical energy in a battery. The panels convert sunlight into electricity that recharges that battery. The system then delivers stored energy to your devices through an inverter.
A solar generator does not generate power on its own. It converts sunlight into electricity, stores that electricity, and delivers it on demand. Three actions, four components, one integrated system.
This distinction matters because it shapes every expectation you should have. No sun means no recharging. A depleted battery means no output regardless of how much sun the panels are seeing. A damaged inverter means no AC output even if the battery is full. Each piece matters, and each piece has a role.
Step 2
The Four Core Components
Every solar generator, from the smallest 300Wh unit to the largest 3000Wh station, is built from the same four core components. The capacity and quality vary, but the function does not.
Solar Panels
Capture sunlight and convert it to DC electricity. Rated in watts (100W to 400W for portable panels). Output depends on sunlight intensity, angle, and temperature.
Charge Controller (MPPT)
Regulates the energy flowing from panels to battery. MPPT (Maximum Power Point Tracking) adjusts voltage to extract the most energy possible under changing conditions.
Battery
Stores the energy for later use. LiFePO4 chemistry is the standard for quality stations. Rated in watt-hours (Wh). Determines total runtime capacity.
Inverter
Converts the battery's DC electricity into AC to power your household appliances. Rated in watts (300W to 3600W). Determines what devices you can run.
Every component affects performance. A weakness in one limits the entire system. A high-capacity battery paired with a weak inverter cannot run heavy appliances. A powerful inverter paired with an undersized battery runs out of juice in minutes. Balance between components is what defines a reliable system, which is why our Top 5 station lineup prioritizes stations where all four components are matched for real backup loads.
Step 3

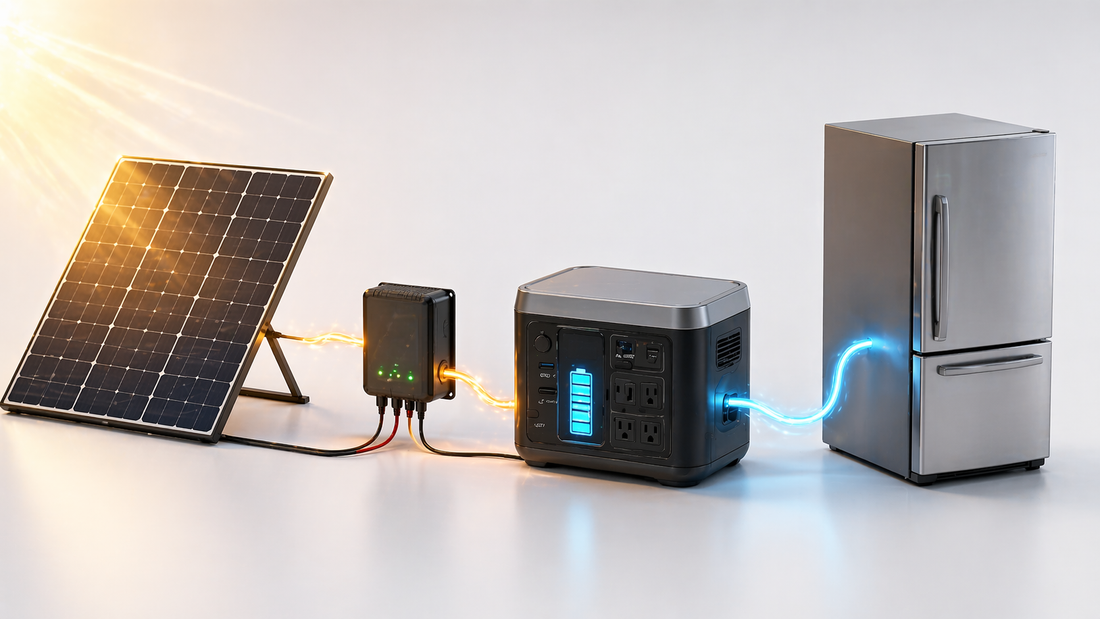

How Energy Flows Through the System
Understanding the path energy takes through a solar generator explains every performance characteristic you will encounter. The flow happens in five stages, each with a specific function.
SUN
Photons strike photovoltaic cells and generate DC current.
MPPT
Charge controller optimizes voltage and current in real time.
BATTERY
Energy is stored. Battery is protected from overcharging.
INVERTER
DC is converted to AC at 120V (North America).
YOUR DEVICES
AC power runs your appliances through standard outlets.
Energy moves through the system in stages. Losses happen at every stage. That is not a flaw, it is physics. The next step explains exactly where those losses come from and why the real output is always less than what your panels collect.
Step 4 · Critical
Why Output Never Equals Input
Every conversion stage in the system loses some energy as heat. This is why a 200W panel in 5 hours of perfect sun never actually delivers 1000Wh of usable power. The real-world output is always lower, and the exact percentage depends on three loss stages.
~95%
MPPT Stage
Charge controller efficiency. Voltage regulation and power tracking lose about 5% as heat dissipation.
~95%
Battery Stage
Charging efficiency. Internal resistance and cell balancing lose another 5% to heat during charge and discharge.
~90%
Inverter Stage
DC to AC conversion. Standby draw and conversion losses remove another 10% as heat.
Multiply these three stages together: 0.95 × 0.95 × 0.90 = 0.81. That means roughly 81% of the energy captured by your panels actually reaches your devices under ideal conditions. In real deployments with temperature variation, cable losses, and suboptimal panel angles, the real-world chain efficiency drops to 65% to 80%.
This is also why loads that draw heavy surge current, like the compressor startup surge on a refrigerator, expose inverter limits immediately. The inverter has to deliver a brief power spike well above the continuous rating, and a weak inverter fails at that moment regardless of how much energy the battery holds.
Plan with real-world numbers, not datasheet maximums. A 65% to 80% chain efficiency is what your sizing math should start from.
⚡ Modern Energy Tip
Three simple habits recover 5% to 15% of the efficiency you would otherwise lose. First, keep panels clean. Dust and pollen can reduce output by up to 10%. Second, adjust panel angle seasonally (closer to 30 degrees in summer, 60 degrees in winter, for typical North American latitudes). Third, avoid operating the station at extreme temperatures. Above 95°F or below 32°F, LiFePO4 charging protection can trigger on most stations and inverter efficiency drops measurably. These are free gains that most owners never capture.
Step 5
What Actually Limits System Performance
Every solar generator has three hard limits that define what it can and cannot do. These limits are independent. Hitting any one of them caps the entire system, regardless of how much headroom the other two have.
Solar input ceiling. The maximum wattage the charge controller can accept from the panels. Typically 400W to 900W on portable stations. A 600W panel array on a station rated for 500W delivers only 500W. The excess is ignored.
Battery capacity. The total amount of energy the station can store, rated in watt-hours (Wh). A 1000Wh battery holds roughly 800Wh of usable energy after the 80% depth-of-discharge rule. This determines how long you can run your devices without sun.
Inverter continuous power. The maximum wattage the inverter can deliver continuously, rated in watts (W). A 1800W inverter can run any device drawing under 1800W. Heavier loads require larger inverters or trigger protective shutdown.
The Core Principle
"The system is only as strong as its weakest limit."
This principle is the foundation of every correct sizing decision. A 2000Wh battery paired with a 300W inverter cannot power a refrigerator during startup surge. A 3600W inverter paired with a 500Wh battery runs out in minutes. For the full method on how to size a panel to respect all three limits simultaneously, see our guide on how to size a solar panel for a portable power station. For station sizing specifically, see what size power station you need for a refrigerator.
Step 6
A Real End-to-End Example
Numbers in isolation are abstract. A complete scenario makes the entire system click.
Consider a typical setup. A 200W solar panel, a 1024Wh LiFePO4 portable power station (Tier 2 class), and a standard household refrigerator with a 150W running draw that cycles at roughly 33% duty (compressor off most of the time). You have 5 peak sun hours on a clear day.
First, let's calculate what the panel actually delivers in a day:
| Stage | Result |
|---|---|
| Theoretical panel output (200W × 5h) | 1000Wh |
| After MPPT loss (95%) | 950Wh |
| After battery charging loss (95%) | ~900Wh stored |
| After inverter loss (90%) | ~810Wh usable |
Now let's calculate what the fridge actually consumes in a day. A 150W fridge running at a 33% duty cycle draws, on average, about 50W continuously over 24 hours:
| Scenario | Daily Consumption |
|---|---|
| Fridge average draw (50W × 24h) | ~1200Wh per day |
| Solar delivery per day (from above) | ~810Wh per day |
| Daily deficit | −390Wh (insufficient) |
The naive reading of specs suggests a 200W panel plus a 1024Wh station is enough to run a standard fridge indefinitely in the sun. Reality says otherwise. The system falls short by roughly 390Wh every day, which means the battery drains progressively and stops after the first night or two.
There are two paths to close that gap. Either upsize the panel to roughly 300W so daily solar delivery climbs to ~1215Wh and matches the fridge's need. Or upsize the station to the 1500Wh to 2000Wh class so the extra stored capacity buffers cloudy days while the 200W panel contributes what it can.
This is why real solar backup setups use panels and batteries sized 20% to 50% larger than the minimum calculation suggests. For your specific setup, our solar panel calculator handles the math with your actual numbers. For fridge-specific runtime estimates, see our refrigerator runtime calculator.
Step 7
Why Solar Alone Is Not Enough, and Common Misconceptions
Solar does not replace the battery. It extends it. The sun is not available at night. It is reduced on cloudy days. It is absent during storms. A solar generator that relies on real-time solar input to power devices is a solar generator that fails every evening and every cloudy morning.
The battery is what makes the system work around the clock. Solar input replenishes the battery when conditions allow. When conditions do not allow (night, clouds, storm), the battery carries the load alone until solar returns. This is why battery capacity matters more than panel wattage for most backup scenarios, and why oversizing the panels without a matching battery is wasted money.
Three common misconceptions follow from not understanding the system:
"Plug-and-play means unlimited runtime"
Every system has a solar input ceiling, a battery capacity, and an inverter rating. All three bind what the system can do. Plug-and-play describes the user experience, not the physics.
"More panel wattage means more power"
The charge controller caps intake at the station's rated ceiling. A 1000W array on a station rated for 500W input delivers exactly 500W. Match the panel to the station, don't just maximize it.
"Solar means free unlimited electricity"
Solar is intermittent and limited by panel size, latitude, weather, and season. A 400W panel in Phoenix in June produces three times more than the same panel in Seattle in December.
Step 8
What Not to Do
Ignore Input Limits
Oversizing panels beyond the station's solar input ceiling wastes capacity. The excess is never captured, regardless of panel size.
Assume 100% Efficiency
Three loss stages remove 15% to 35% of captured energy. Always plan with 65% to 80% real chain efficiency, not datasheet maximum.
Undersize the Battery
Big panels with a small battery deplete quickly after dark. Battery capacity determines runtime without sun, not panel size.
Forget the Inverter Limit
A 300W inverter cannot run a 1500W device even if the battery is full. Match inverter rating to your appliance wattage.
Quick Decision Guide
| Your Situation | System Type | Key Consideration |
|---|---|---|
| Phone charging, lights, small electronics | Tier 1 solar generator (500Wh class + 100W panel) | Any mainstream brand works. Focus on connector compatibility. |
| CPAP, fan, laptop, small fridge | Tier 2 solar generator (1000Wh class + 200W panel) | Verify LiFePO4 battery chemistry for safe overnight cycling. |
| Standard fridge, multi-day outage coverage | Tier 3 solar generator (2000Wh class + 400W panel) | Verify inverter surge rating handles refrigerator startup. |
| Freezer, multiple appliances, extended outages | Tier 4 solar generator (2500Wh+ + parallel panels) | Check solar input ceiling handles combined panel wattage. |
Understanding Checklist
- A solar generator is a system of 4 components, not a single device
- Every conversion stage loses energy as heat (chain efficiency 65% to 80%)
- Solar input ceiling, battery capacity, and inverter power are three independent limits
- The weakest limit caps the entire system performance
- Solar extends the battery, it does not replace it (night and clouds still require storage)
- Panel oversizing beyond input ceiling wastes money with zero gain
- Real output is always lower than theoretical input, plan with conservative estimates
- LiFePO4 battery chemistry is the standard for reliable backup performance
Final Verdict
A Solar Generator Is a System, Not a Device
A solar generator is not a single device. It is a system of four components (solar panels, charge controller, battery, and inverter) working together through a specific energy flow with real, measurable losses at every stage. Understanding how it works is what allows you to use it effectively, size it correctly, and set realistic expectations for real outage conditions.
The best system is the one where all four components are balanced. The weakest limit defines the ceiling. Match the battery to your runtime need, match the inverter to your heaviest device, match the panels to your daily consumption, and you have a system that delivers exactly what the math says it will deliver.
